All-In-One Smoking Wizard Tool
The JOINT MAGIC allows you not only to produce your own cone, grind and tube different raw materials,
but also improves your consumption experience
and helps you to focus on the enjointment.
There are other smoking tools out there, but they only cover part of the whole Joint production or consumption process and often don't realy work.

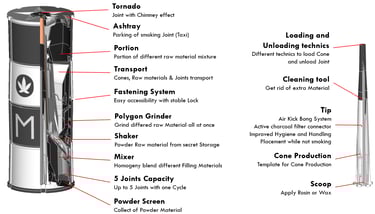

Advantages
All-In-One covers all Process steps
New Polygon Grinder design
5J Technology: Build once smoke 5 Joints
Smoking Tip with Bong effect, active charcoal filter and improved handling
Shaker Concept to add powder Raw Materials in Joint
Tubing with granular convection, plunging and scrapping
Different Loading and Unloading Techniques
Use pre manufactured cones or produce yourself
Operating
Plug Center hole with Pilot, portion raw material into Loader
Open/Close: Twist Loader to Transmitter to open filling channels
Pushing: Push raw material through filling channel using Pilot
Closing: Twist Loader to Transmitter to close and put Cap on Loader
Grinding: Twist Transformer to Cylinder to shred raw material
Knock: Knock with Storage on Table, Powder material is added and Material transported
Mixing: Mixing different Materials in Storage containers
Loading: Load cone with Pilot through Funnel in Center
Tilt & Knock: Plug Funnel with finger, tilt Joint Magic and knock with Cap on Table
Tubing: Thereby the material will be thrown and fall in the loaded cone
Plugging: Let Pilot fall in funnel to compact material in cone
Scraping: Twist Storage to Cylinder to add material in cone
Level: Continue Plunging, Scraping and Knocking until Plunger is level with Funnel
Pulling: Lift Joint Magic remove Cap and pull on Joint Filter until Pilot stops to slide into Funnel
Unloading: Tilt Joint Magic and with Pilot placed in Cap push out Joint upward in direction of Loader
Push Up: Force Pilot with Cap Fins all the way in Funnel und complete unload Joint
Consumption: Remove the Tip from the Pilot and equip it with an active charcoal filter and Joint
Air Kick: Open and close Air Kicker Holes in Tip to change smoking behavior and rest in Cap

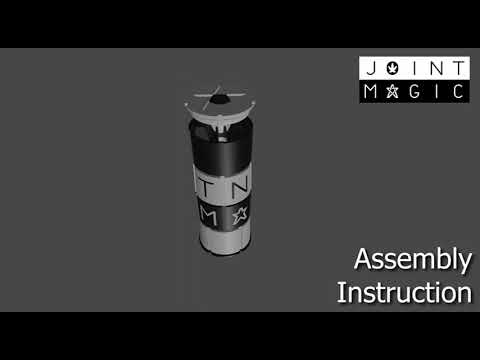

Assembly
Sub Assemblys:
Grinder on Storage
Filler on Grinder
Cap on Filler
Pilot in Storage
Grinder:
Transmitter on Cylinder
Piston on Cylinder
Piston on Transmitter
Filler:
Center in Loader
Storage:
Screen on Funnel
Funnel in Glass
Cap:
Plug in Lid
Pilot:
Pen in Plunger
Plunger in Tip

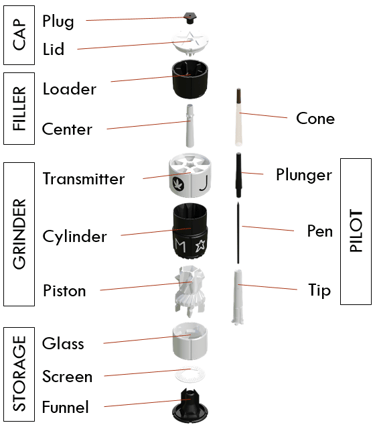

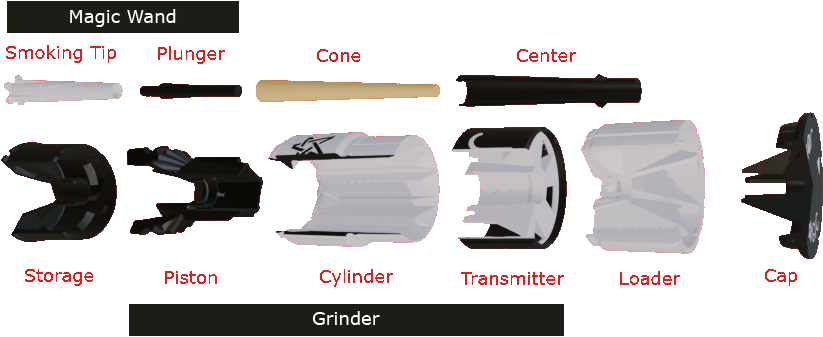

Parts
The Joint Magic consists of 13 Parts, these are divided in 5 Subassemblies, each Part serves multiple purposes.
Total Measurements:
Diameter: 60mm / 2.4"
Length: 170mm / 6.7"
Weight: 300g
Material: Recyclable PLA
